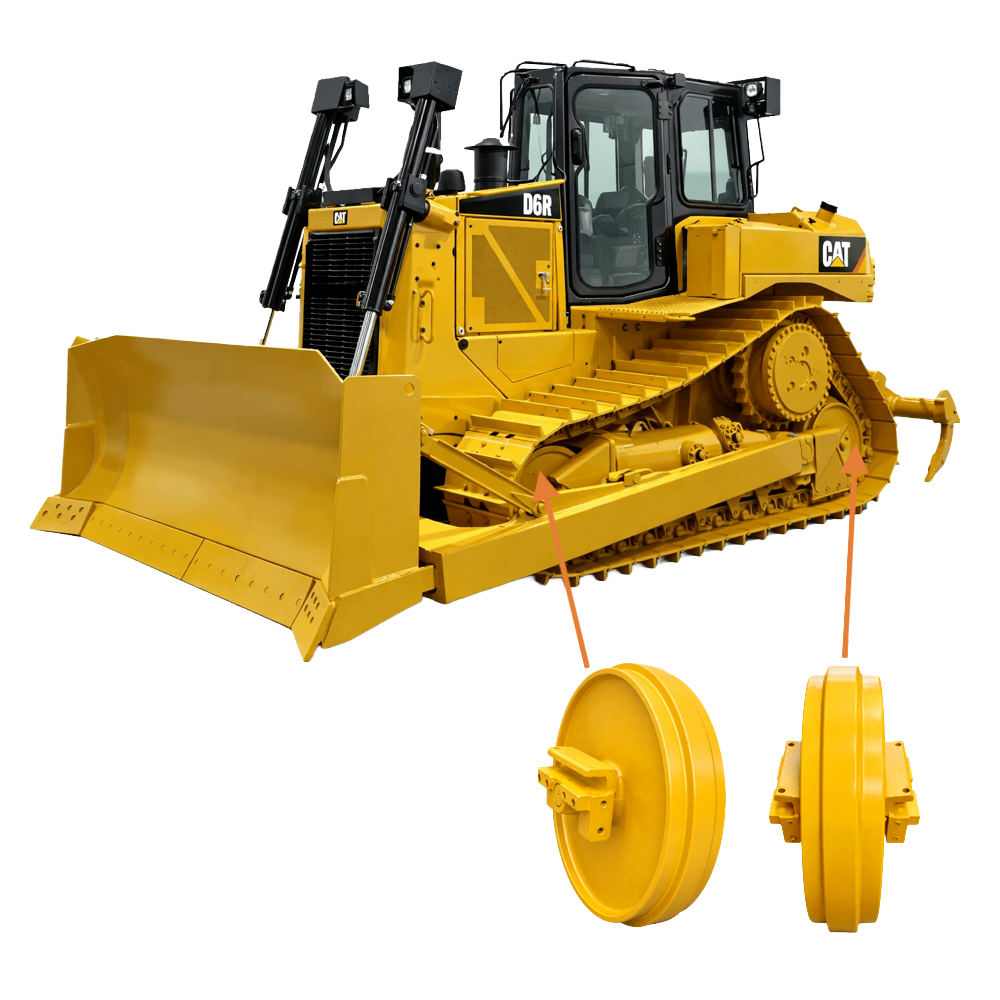

Dozer Idlers: Aftermarket Front & Rear Idler Parts For Bulldozers
At EquipXR, we supply aftermarket dozer idlers for a wide range of machines across major OEM brands. Our goal as an aftermarket parts supplier is to help contractors, fleet managers, and equipment owners get the replacement parts they need, fast. Whether you are replacing a worn front idler, sourcing a rear idler assembly, or matching a specific machine and serial range, our team helps you find the parts to keep your equipment running.
Aftermarket Dozer Idlers For All Makes & Models
Dozer idlers are critical components of a bulldozer’s undercarriage. A worn idler will misalign the track, increase stress on other parts, and cause problems to spread quickly.
Whether you’re doing scheduled maintenance or dealing with a jobsite breakdown, EquipXR has the dozer idler parts you need. Our parts are in stock and ready to ship. We offer idlers for all major dozer makes and models. This includes Caterpillar, Komatsu, John Deere, Liebherr, CASE, Dresser, Volvo, and Hitachi. Our idlers come in sealed and lubricated types to match your machine’s original spec. Complete idler groups, with arms, brackets, and hardware, offer a bolt-on replacement.
With over 50,000 parts stocked nationwide, our parts experts will quickly get you the part you need.
Front Idlers
The front idler sits at the front of the dozer undercarriage. It is the primary tensioning and shock-absorbing part of the track system. As the dozer pushes forward, the front idler absorbs most impact. It works with the track adjuster to keep the chain tight and aligned.
EquipXR carries front idler replacements for all major dozer makes and models. Complete front idler groups (including the idler, yoke arms, and mounting brackets) are available for most models, making installation faster and more reliable than sourcing components individually.
EquipXR offers idlers in standard and heavy-duty options, available as a bare front track idler wheel or complete assembly groups. This selection lets operators match replacements to machine needs and schedule.
Find your current front idler’s OEM part number on your parts invoice or in your machine’s parts book, then contact EquipXR for aftermarket replacements. Below is a partial reference list of commonly requested front idler and front idler assembly part numbers. These OEM part numbers are commonly used reference numbers for Caterpillar, John Deere, CASE, Komatsu, and Liebherr dozers. Even if your part number is not listed here, we likely have an equivalent aftermarket idler part or idler assembly in stock. Contact us for our full inventory of aftermarket front idlers.
- CAT 9W9991 Double-flange idler
- CAT 106-9187 Front idler
- CAT 190-1534 / 190-1551 Front idler
- CAT 244-1323 Front idler
- CAT 6L9212 Front idler
- CAT 6S3277 Front idler
- CAT 7T3501 Front idler
- CAT 111-1730 Front / Large Diameter
- CAT 9W9989 Front double-flange idler
- CAT 5M5009 Front Idler
- CAT 8S2560 Front Idler
- CAT 6Y0554 Front idler assembly
- CAT 161-7549 Front idler assembly
- CAT 7T4562 Front idler assembly
- CAT 9N4173 Front idler assembly
- CAT 7T4509 Front idler assembly
- CAT 6Y0557 Front single-flange idler
- CAT 9W7647 Front single-flange idler
- CAT 202-4303, 202-4304, 202-4296 Front/Rear depending on configuration
- CAT 167-1947 Heavy/Special Application
- CAT 135-9896 / 6Y2031 Idler
- CAT 159-2086 / 192-0224 Idler
- CAT 125-3537 / 9W9734 Idler Group
- CAT 125-4655 Idler Group
- CAT 187-1484 Idler Group
- CAT 7T2769 Idler Group
- CAT 9W9734 Idler Group
- CAT 9S7221 Idler-Shell
- CAT 9H8489 Idler/Idler-Shell
- CAT 6T3216 Large Idler
- CAT 190-1546 Large Idler Group
- CAT 192-0216 Large Idler Group
- CAT 202-4304 Large Idler Group
- CAT 190-1551 Large Idler Group
- CAT 156-0313 / 9W9650 Single-flange idler / Shell
- CCE 199076A1 Alternate/superseded reference
- CCE 103384A1 Front
- CCE 366245A1 Front idler
- CCE 389164A1 Front idler
- CCE R58832 Front idler
- CCE R52404 Front Idler
- CCE R58710 Front Idler
- JD AT32570 Complete idler group with brackets
- JD AT210558 Front idler
- JD AT307886 Front idler
- JD AT304377 Front idler
- JD AT416907 Front idler
- JD AT220995 Front idler group
- JD AT184193 Idler
- JD AT406975 Idler & Recoil/Spring Assembly
- JD AT305809 Track Idler
- KM 12Y-27-11510 Idler
- KM 124-27-51155 Front
- KM 134-27-61460 Front
- KM 124-30-00102 / 124-30-00103 Front
- KM 124-30-00105 / 124-30-00106 Front
- KM 12Y-30-00011 Front
- KM 17A-30-00040 Front
- KM 103-30-00110 Front idler
- KM 154-30-00293 Front idler
- KM 195-30-00283 Front idler
- KM 11Y-30-00010 Front idler assembly
- KM 14X-30-00112 Front idler assembly
- KM 154-30-00072 Idler
- KM 175-30-00575 Idler
- KM 195-30-01430 / 195-30-01431 Idler
- KM 134-30-00201 Idler Group
- LB 10014339 Idler
- LB 10300209 Idler
All manufacturer names, symbols, brands, and OEM part numbers are used for identification and reference purposes only. EquipXR does not represent that any listed part is an OEM product. All part details should be verified with an EquipXR parts specialist prior to ordering to confirm aftermarket compatibility with your dozer make and model.
Rear Idlers
On dozers with a rear idler, this part supports the track chain at the back of the undercarriage. It helps keep alignment and tension, spreads the machine’s weight load, and reduces stress on the sprocket. While the rear idler gets less impact than the front, it still wears out with time. Regular inspection should be part of any maintenance interval.
EquipXR stocks rear idler assemblies for all dozer makes and models, each matched to OEM specs for fit and performance. Need a rear idler or rear-position assembly? Send your machine details and part numbers now! We’ll quickly identify the right aftermarket replacement and confirm compatibility before you order.
The OEM part numbers below are a partial list of our commonly requested rear idlers for applicable models from CAT and Komatsu dozers. Find your current rear idler OEM part number on your parts invoice or in your machine’s parts book, then contact EquipXR for aftermarket replacements. Even if your part number is not listed here, we likely have an equivalent aftermarket part in stock. Contact us for our full inventory of aftermarket rear idlers and rear idler assemblies.
- CAT 106-9187 Rear Idler
- CAT 111-1729 Rear Idler Assembly
- CAT 135-9896 Rear Idler
- CAT 151-4587 Rear / Small
- CAT 160-9751 Rear idler
- CAT 160-9754 Rear Idler
- CAT 192-0224 Rear Idler Assembly
- CAT 202-4296 Rear Idler Assembly
- CAT 244-1324 Rear / Small Diameter
- CAT 305-9270 Steel Rear Idler
- CAT 6Y-2031 Rear Idler
- CAT 6Y0554 Rear
- CAT 7T-4400 Rear Idler
- CAT 7T-6996 Rear Idler
- CAT 7T3723 Rear
- CAT 7T6996 Rear / Small
- CAT 9W9987 Rear
- KM 195-30-00055 Rear Idler
- KM 195-30-00056 Rear Idler
- KM 195-30-00057 Rear Idler
- KM 195-30-00058 Rear Idler
- KM 195-30-00059 Rear Idler
All manufacturer names, symbols, brands, and OEM part numbers are used for identification and reference purposes only. EquipXR does not represent that any listed part is an OEM product. All part details should be verified with an EquipXR parts specialist prior to ordering to confirm aftermarket compatibility with your dozer make and model.
OEM-Equivalent Aftermarket Dozer Idlers
EquipXR supplies OEM-equivalent aftermarket dozer idlers built for dependable performance, quality materials, and consistent operation in tough environments. Each idler in our catalog meets or exceeds OEM dimensional and material standards. Our team sources from manufacturers specializing in heavy equipment undercarriage parts. All idlers are backed by EquipXR’s warranty.
Bulldozer Idler Compatibility by OEM Brand & Model
EquipXR offers aftermarket dozer idlers compatible with many manufacturers and machine families, including:
| Manufacturer | Most popular models/series |
|---|---|
| Caterpillar (CAT) Dozer Idlers | D3, D4, D5, D6, D7, D8, D9, D10, D11, and other models/series variants |
| Komatsu Dozer Idlers | D51PXi-24, D61PXi-24, D71PXi-24, D61, D65, D85, D155, and other models/series variants |
| John Deere Dozer Idlers | 650 P-Tier, 700L / 700 P-Tier, 750 P-Tier, 850 P-Tier, and other models/series variants |
| CASE Dozer Idlers | 1150M, 1650M, 2050M, and other models/series variants |
| Liebherr Dozer Idlers | PR 716, PR 726, PR 736, and other models/series variants |
| Shantui Dozer Idlers | SD16, SD22, SD32, and other models/series variants |
Don’t see your model listed? Contact our parts specialists. We support many legacy and discontinued machines. Our team will find the right idler for your specific serial number and configuration. All manufacturer and model names, and OEM reference numbers, are for identification only. Always confirm final fitment before ordering to ensure the idler matches your machine.

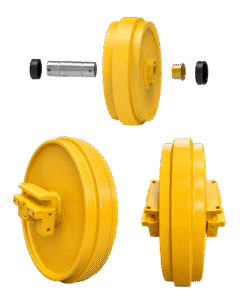

Types of Idler Groups & Their Functions
Dozer idlers are available as complete idler groups or individual idler wheels. Complete idler groups are the preferred replacement option for most dozer applications because they eliminate the risk of mixing worn and new components and typically install faster with less labor.
Bare Idler Wheels are the idler shell only (the wheel itself without mounting hardware). These are the right choice when the arms, brackets, and shaft on your existing idler group are still serviceable, and only the wheel has worn down.
Idler Groups/Idler Assemblies include the idler wheel, mounting arms, yoke brackets, and, in many cases, the shaft and bearings. Complete assemblies are the preferred replacement when the existing hardware shows wear or damage, or when you want a straightforward, no-guesswork installation.
Within those assemblies, idlers fall into two primary configurations: sealed and lubricated. If you’re unsure which configuration your dozer requires, our parts team will verify based on your make, model, and serial number.
Sealed Idlers
Sealed idlers are pre-filled with grease at the factory and designed to be maintenance-free for their service life. The internal bearing cavity is permanently sealed against contamination from dirt, mud, and water, making it an excellent choice for machines operating in abrasive or high-moisture environments. Because field servicing isn’t required, sealed idlers are the most common configuration on modern dozer platforms and are often the easiest drop-in replacement for operators who want to minimize maintenance intervals.
Lubricated Idlers
Lubricated (oil-bath) idlers use an internal oil reservoir to keep the bearings and shaft lubricated throughout operation. These idlers can be serviced in the field (oil can be checked and replaced as part of a regular maintenance schedule), which makes them a preferred option for operators running certain legacy machines or working in an application where extended serviceability is a priority. Lubricated idlers are also the OEM-specified configuration on a number of older Caterpillar, Komatsu, and Dresser models.
Signs Your Dozer Idler Needs Replacement
Idlers wear gradually, so the signs of failure develop slowly. Catching them early prevents damage to the rest of the undercarriage. Watch this video to see a CAT Dozer idler replacement in action, and then make sure you look out for these idler damage and wear indicators on your equipment:
- Clanking or banging from the undercarriage is a warning sign. A worn idler shell rides directly on the shaft after the bearing wears out. This creates a clanking sound, especially at low speeds or during direction changes.
- Visible shell cracks or idler wear are warning signs. Healthy idlers have smooth, consistent flanges. If you see chipping, cracks, or the shell is much smaller than spec, it is at or past the limit.
- Repeated track tension issues may point to worn idlers. If you keep adjusting tension and the adjuster is fine, the idler may be too worn to keep the chain tight, even if fully extended.
- Idler wobble or movement on the shaft. Lateral movement or wobble in the idler shell during operation shows bearing failure. Replace immediately to avoid damage to the yoke arms and frame.
Dozer Idler Replacement & Maintenance Tips
- Inspect the idler every time you check the undercarriage. Most manufacturers suggest a full check every 250–500 hours. At each inspection, check the shell diameter, flange condition, and bearing play.
- Idlers have a wear limit, which is measured as the minimum shell diameter. Once this limit is reached, continued use accelerates wear on the track chain and rollers.
- Replacing a track chain but keeping a worn idler is a costly mistake. The bad geometry will wear out the new chain fast. It often makes sense to replace the idler group when you change the chain.
- If your track chain and rollers are mid-life, a much harder or a different-sized new idler will accelerate wear on nearby parts. Our parts team will help you pick a replacement that fits your existing undercarriage components.
- The idler and track adjuster work together, so you should inspect both. A leaking adjuster cylinder or a broken adjuster spring will place additional stress on the idler, leading to premature failure.
- After any idler replacement, reset track tension according to OEM specs before returning the machine to service. Tension that’s too tight or too loose will put unnecessary stress on the new idler, shortening its service life.
- Routine undercarriage cleaning helps, especially in conditions where your blades are pushing muddy, abrasive, or debris-heavy material. In those environments, material buildup can easily prevent the track chain from being able to loop properly and disrupt normal track movement.
Dozer Idler FAQs
The front idler is located at the leading end of the undercarriage and serves as the primary tensioning and shock-absorbing component in the track system. It works directly with the track adjuster to keep the chain at the correct tension and takes the most impact force as the machine moves forward. Not all dozers have a rear idler; its presence depends on the machine’s undercarriage design and size class. The rear idler on applicable dozer configurations is positioned at the back of the undercarriage frame and helps guide and support the track chain during reverse operation and downhill travel. Front idlers typically experience more wear and are replaced more frequently than rear idlers.
It depends on the condition of the surrounding hardware. In many cases, you can replace just the idler shell if the yoke arms and mounting brackets are still in serviceable condition. However, complete idler groups (including the shell, shaft, bearings, seals, and hardware) are generally recommended. Replacing the full group eliminates any risk from mixing worn and new components, reduces labor time, and ensures the entire assembly is operating at the same wear stage. EquipXR carries both individual idlers and complete idler groups for most dozer applications, and our parts specialists can help you assess which is right for your situation.
Idler lifespan varies significantly depending on the operating environment, ground conditions, and the condition of the undercarriage. In average conditions, dozer idlers typically last somewhere in the range of 3,000 to 5,000 operating hours. But that number can drop considerably in abrasive, rocky, or wet environments that accelerate wear. Regular undercarriage inspections and proper track tension management are the most effective ways to maximize idler life.
Yes. Quality aftermarket idlers from a reputable supplier (like EquipXR) are engineered to meet or exceed the same specifications as OEM parts. EquipXR sources idlers manufactured to OEM tolerances, using the same high-strength cast steel and heat-treatment processes; shell diameter, flange profile, and bearing specs all match those specified by the original equipment manufacturer for your machine. Our parts are backed by EquipXR’s warranty, giving you the same confidence you’d expect from a dealer.
Yes. EquipXR helps supply parts for legacy machines that OEM dealers no longer actively support. If you’re running an older or a vintage dozer from another manufacturer, contact our parts team. We maintain an inventory of older Komatsu, CASE, Dresser TD series, Kobelco, John Deere, and CAT equipment that OEM dealers no longer actively support.
We also have access to a broad network of aftermarket and new-old-stock suppliers for discontinued models to help locate the right idler parts when dealer channels come up empty.
Yes. EquipXR carries aftermarket dozer parts compatible with all major manufacturers, including Caterpillar (CAT), John Deere, Komatsu, CASE, Liebherr, Dresser, Volvo, and Hitachi. Our inventory covers a wide range of model families within each brand, from compact utility dozers up to large production-class machines.
If you don’t see your specific make or model listed, contact our parts team, we’ll likely have the parts you need already in stock, or can track it down for you quickly.
Related Dozer Undercarriage Parts
EquipXR offers a full range of aftermarket dozer undercarriage parts for major makes and models. If you are already replacing rollers, idlers, sprockets, or other undercarriage parts, this is a good time to review the rest of the undercarriage and address any parts nearing the end of their service life. A more complete repair approach saves labor, reduces repeat downtime, and improves overall performance.
Dozer Rollers | Dozer Sprockets | Final Drives | Track Adjusters & Recoil Springs
Why Choose EquipXR for Aftermarket Dozer Idlers?
Broad Inventory, Ready To Ship
EquipXR maintains an extensive in-stock inventory of dozer idlers across all major makes and models, so you’re not waiting on a dealer to place a special order.
Front & Rear Idler Coverage
We stock both front and rear idler replacements across all applicable models, in sealed and lubricated configurations, so you can source everything you need from one supplier.
Competitive Pricing
EquipXR offers aftermarket-quality at a price point that makes planned maintenance easier to budget for, without compromising the performance or longevity of your undercarriage.
High-Quality Aftermarket Parts
Every idler we carry is sourced to meet or exceed OEM specifications. You get the correct fit, the correct material hardness, and the correct configuration for your machine, backed by EquipXR’s parts warranty.
Expert Parts Support
Not sure which dozer undercarriage idler part fits your machine, or whether you need a sealed or lubricated configuration? Our team knows heavy equipment undercarriage and can verify the right part based on your make, model, and serial number before you order.
Get the Undercarriage Parts Your Dozer Equipment Needs
The idler guides the track chain around the undercarriage frame, maintains proper track tension, and absorbs the constant shock loads generated as your machine pushes through dirt, rock, and debris. When an idler wears out or fails, it puts stress on every connected component, from the track chain to the rollers to the final drive.
EquipXR maintains a comprehensive inventory of dozer idlers from all major brands, across all machine sizes and undercarriage configurations. Our aftermarket idlers are engineered to OEM tolerances at a fraction of the cost. Contact our parts specialists today to find the dozer idler parts your machine needs.
